俄羅斯型普通整流二極管（螺旋式）Russian Tyoe Standard Recovery Diodes(Stud Verstion)
|
Type |
VRRM |
IRRM |
IF(AV) |
IF(RSM) |
IF(SM) |
VFM/IFM |
Tj |
Rjc |
M2 |
Wt |
Outline |
|
|
|
Tc55℃ |
|
10ms |
25℃ |
|
|
|
|
||
|
|
V |
mA |
A |
A |
kA |
V/A |
℃ |
℃/W |
N/m |
Kg |
|
|
D211-10(X) |
100-1200 |
3 |
10 |
15 |
0.25 |
1.35/31 |
-40 ~ +150 |
2.700 |
0.9-1.1 |
0.006 |
|
|
D212-16(X) |
100-1200 |
3 |
16 |
25 |
0.27 |
1.35/50 |
2.000 |
0.9-1.1 |
0.006 |
||
|

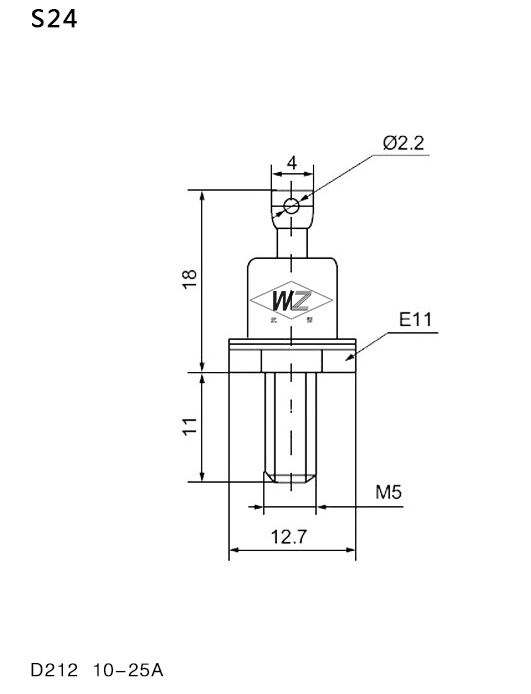

D212-25(X) |
100-1200 |
3 |
25 |
39 |
0.34 |
1.35/78 |
1.250 |
0.9-1.1 |
0.006 |
||
|

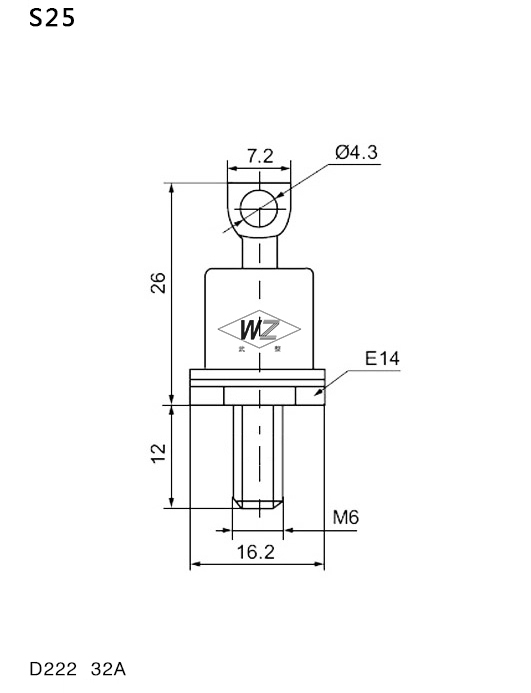

D222-32(X) |
100-1200 |
5 |
32 |
50 |
0.46 |
1.35/100 |
1.000 |
1.4-1.8 |
0.015 |
||
|
D222-40(X) |
100-1200 |
5 |
40 |
62 |
0.55 |
1.35/125 |
0.800 |
1.4-1.8 |
0.015 |
||
|
D232-50(X) |
100-1600 |
6 |
50 |
76 |
1.20 |
1.35/157 |
0.600 |
5.0-6.2 |
0.027 |
||
|
D232-63(X) |
100-1600 |
6 |
63 |
96 |
1.40 |
1.35/198 |
0.500 |
5.0-6.2 |
0.027 |
||
|

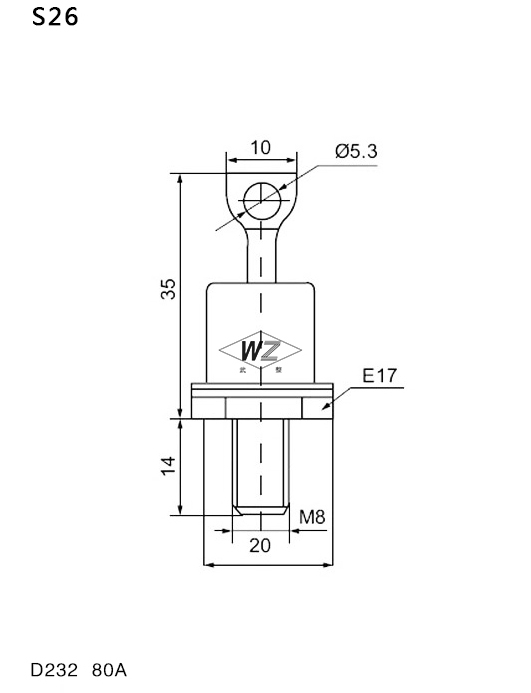

D232-80(X) |
100-1600 |
5 |
80 |
125 |
1.50 |
1.35/250 |
0.400 |
5.0-6.2 |
0.027 |
||
|

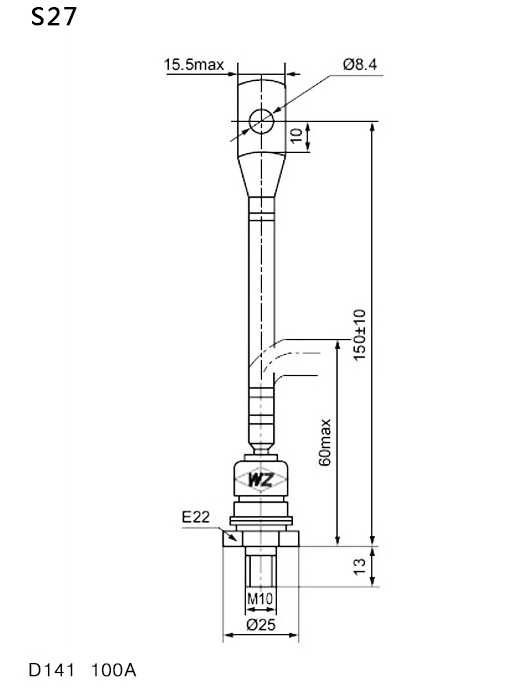

D141-100(X) |
100-1600 |
20 |
100 |
180 |
2.20 |
1.35/314 |
0.400 |
6-10 |
0.090 |
||
|

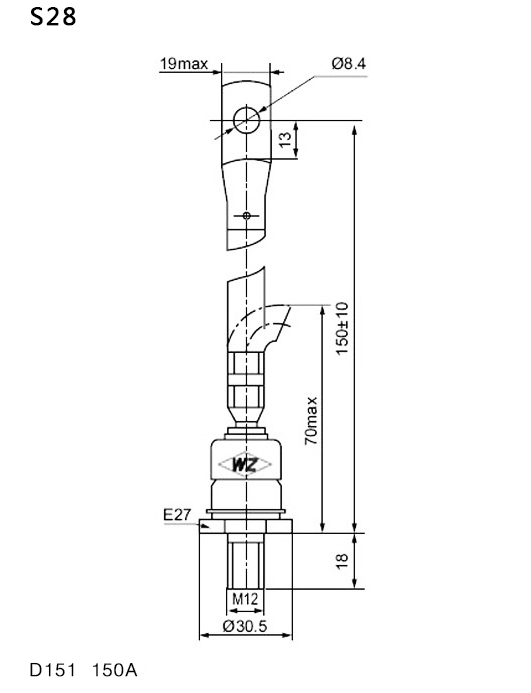

D151-125(X) |
100-1600 |
20 |
125 |
195 |
3.00 |
1.35/392 |
0.300 |
10-20 |
0.165 |
||
|
D151-160(X) |
100-1600 |
20 |
160 |
300 |
4.50 |
1.35/502 |
0.240 |
10-20 |
0.165 |
||
|

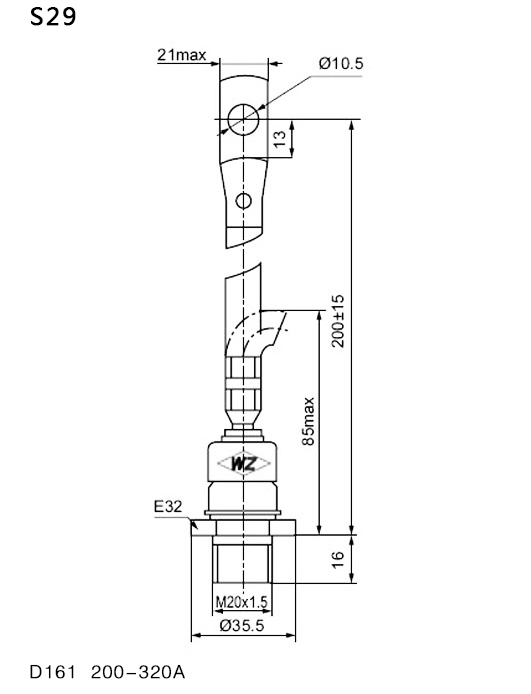

D161-200(X) |
100-1800 |
40 |
200 |
400 |
5.50 |
1.35/602 |
0.150 |
20-30 |
0.250 |
||
|
D161-250(X) |
100-1800 |
40 |
250 |
480 |
6.40 |
1.35/785 |
0.140 |
20-30 |
0.250 |
||
|
D161-320(X) |
100-1800 |
40 |
320 |
520 |
7.50 |
1.35/1005 |
0.130 |
20-30 |
0.250 |
||
|
D171-400(X) |
100-2400 |
50 |
400 |
725 |
14.25 |
1.40/1256 |
0.085 |
20-30 |
0.465 |
||
|
D171-500(X) |
100-2400 |
50 |
500 |
760 |
14.0 |
1.45/1500 |
0.080 |
25-35 |
0.465 |
俄羅斯型快恢復(fù)二極管(螺旋式) Russian Type Fast Recovery Diodes (Stud Version)
|
Type |
VRRM |
IRRM |
IF(AV) |
IF(RSM) |
IF(SM) |
IF(SM) |
Trr |
Tj |
Rjc |
M2 |
Wt |
Outline |
|
|
|
Tc55℃ |
|
10ms |
10ms |
|
|
|
|
|
||
|
|
V |
mA |
A |
A |
kA |
kA |
μs |
℃ |
℃/W |
N/m |
kg |
|
|
DF212-10 |
400-1400 |
10 |
10 |
16 |
0.18 |
2.30/31 |
0.5 |
-40 ~ +150 |
2.50 |
0.9 |
0.006 |
|
|
DF212-16 |
400-1400 |
10 |
16 |
25 |
0.25 |
2.30/50 |
0.5 |
1.60 |
0.9 |
0.006 |
||
|
DF212-20 |
400-1400 |
10 |
20 |
31 |
0.31 |
2.30/62 |
0.5 |
1.20 |
0.9 |
0.006 |
||
|
DF222-25 |
400-1400 |
15 |
25 |
39 |
0.40 |
2.30/78 |
0.5 |
1.00 |
1.4 |
0.015 |
||
|
DF222-32 |
400-1400 |
15 |
32 |
50 |
0.50 |
2.30/98 |
0.5 |
0.80 |
1.4 |
0.015 |
||
|
DF232-40 |
400-1400 |
20 |
40 |
62 |
0.60 |
2.30/125 |
0.7 |
0.60 |
5.0 |
0.027 |
||
|
DF232-50 |
400-1400 |
20 |
50 |
78 |
0.75 |
2.30/157 |
0.7 |
0.50 |
5.0 |
0.027 |
||
|
DF232-63 |
400-1400 |
20 |
63 |
98 |
0.95 |
2.30/198 |
0.7 |
0.40 |
5.0 |
0.027 |
||
|
DF141-63 |
400-1400 |
50 |
63 |
100 |
2.0 |
2.23/198 |
1.0, 2.0 |
0.45 |
6 |
0.090 |
||
|
DF141-60 |
400-1400 |
30 |
80 |
125 |
2.5 |
1.58/250 |
4.8 |
0.45 |
6 |
0.090 |
||
|
DF151-125 |
400-1400 |
30 |
125 |
200 |
4.0 |
2.04/390 |
2.0 |
0.25 |
10 |
0.165 |
||
|
DF161-160 |
400-1400 |
20 |
160 |
250 |
3.5 |
2.45/500 |
3.2, 4.0 |
0.25 |
20 |
0.250 |
||
|
DF161-200 |
400-1400 |
20 |
200 |
300 |
4.3 |
1.85/528 |
3.2, 4.0 |
0.25 |
20 |
0.250 |
||
|
DF161-250 |
400-1400 |
30 |
250 |
390 |
4.5 |
2.71/785 |
3.2, 4.0 |
0.15 |
20 |
0.250 |
||
|
DF171-320 |
400-1400 |
30 |
320 |
500 |
5.3 |
2.13/1000 |
5.0, 6.5 |
0.15 |
25 |
0.465 |
俄羅斯型雪崩二極管(螺旋式) Russian Type Avalanche Rerctifier Diodes (Stud Version)
|
Type |
VRRM |
IRRM |
IF(AV) |
IF(RSM) |
IFSM |
i2t |
VFM/IFM |
TTO |
PRSM |
rT |
Tjmax |
Rth(j-c) |
M2 |
Wt |
Outline |
|
|
|
Tc55℃ |
|
10ms |
|
|
|
100mks |
|
|
|
|
|
||
|
|
V |
mA |
A |
A |
kA |
A2S103 |
V/A |
V |
kW |
mΩ |
℃ |
℃/W |
Nm |
kg |
|
|
DL211-10 |
400-1600 |
6 |
10 |
15 |
0.25 |
0.31 |
0.35/31 |
0.09 |
2.5 |
17.5 |
-40 ~ +150 |
2.70 |
0.9-1.1 |
0.006 |
|
|
DL212-16 |
400-1600 |
6 |
16 |
25 |
0.27 |
0.36 |
1.35/50 |
0.90 |
2.5 |
10.5 |
1.75 |
0.9-1.1 |
0.006 |
||
|
DL212-25 |
400-1600 |
6 |
25 |
39 |
0.34 |
0.58 |
1.35/78 |
0.90 |
2.5 |
6.10 |
1.10 |
0.9-1.1 |
0.006 |
||
|
DL222-32 |
400-1600 |
8 |
32 |
50 |
0.46 |
1.06 |
1.35/100 |
0.85 |
3.0 |
5.00 |
0.95 |
1.4-1.8 |
0.012 |
||
|
DL222-40 |
400-1600 |
8 |
40 |
62 |
0.55 |
1.51 |
1.35/125 |
0.85 |
3.0 |
4.00 |
0.80 |
1.4-1.8 |
0.012 |
||
|
DL232-50 |
400-1600 |
10 |
50 |
78 |
12 |
72 |
1.35/157 |
0.83 |
5.0 |
3.10 |
0.60 |
5.0-6.2 |
0.027 |
||
|
DL232-63 |
400-1600 |
10 |
63 |
98 |
14 |
98 |
1.35/198 |
0.83 |
5.0 |
2.80 |
0.50 |
5.0-6.2 |
0.027 |
||
|
DL232-80 |
400-1600 |
10 |
80 |
125 |
15 |
11.25 |
1.35/250 |
0.83 |
5.0 |
2.10 |
0.40 |
5.0-6.2 |
0.027 |
||
|
DL141-100 |
400-1600 |
15 |
100 |
150 |
2.2 |
24 |
1.35/314 |
0.95 |
25 |
1.60 |
0.40 |
6-10 |
0.090 |
||
|
DL151-160 |
400-1600 |
15 |
150 |
220 |
4.5 |
45 |
1.35/392 |
0.95 |
25 |
1.30 |
0.30 |
10-20 |
0.165 |
||
|
DL161-200 |
400-1600 |
25 |
200 |
300 |
5.5 |
100 |
1.35/600 |
0.90 |
16 |
0.85 |
0.25 |
20-30 |
0.265 |
||
|
DL161-250 |
400-1600 |
25 |
250 |
375 |
6.4 |
150 |
1.35/750 |
0.90 |
16 |
0.75 |
0.15 |
20-30 |
0.265 |
||
|
DL171-320 |
400-1600 |
25 |
320 |
450 |
7.5 |
200 |
1.35/900 |
0.90 |
16 |
0.65 |
0.13 |
20-35 |
0.460 |
||
|
DL171-400 |
400-1600 |
25 |
400 |
600 |
9.25 |
280 |
1.35/1200 |
0.90 |
16 |
0.55 |
0.095 |
20-35 |
0.460 |
